BRAND NEW !!!

New 1" Particulate Filter & Pressure Regulator / Water Trap Compressed Air Line Coalescing Filter and Desiccant dryer combo AUTO Drainer
Compressed air dryers reduce the quantity of water vapor, liquid water, hydrocarbon, and hydrocarbon vapor in compressed air. Moisture in compressed air is harmful. Water damages a compressed air system several ways. The result is lower productivity, increased maintenance, and higher operating costs. You can minimize the damage wet compressed air can inflict on your system by drying it.

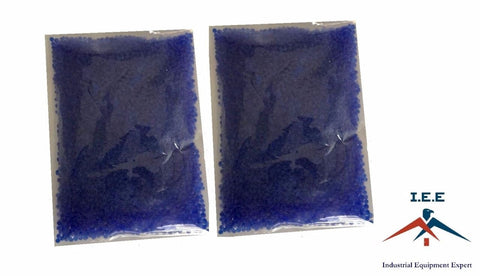

Comes w/ 2 bags of desiccant beads.

1" HIGH FLOW Air Pressure Regulator & Filter Water Trap & AUTO DRAIN

FR928NA 1" 5 Micro Filter/Regulator w/ auto Drain 11.9 oz capacity

Features
• Port Size (PT, NPT): 1"

• Filter Element: 5u

• Max Input Pressure(PSI): 250

• Max Output Pressure(PSI): 225

• Operating Temperature Range (celsious) 41F - 140F

This listing is for a large body, industrial grade 1" NPT coalescing filter / oilesser. This filter is used to remove oil from your air compressor air-line system. This filter features one 1" NPT inlet port and one 1" NPT outlet port. The max air flow for this filter is up to 200 SCFM. This coalescing filter has an easy twist drain at the bottom to empty it when it is full and it also has a PSI gauge on top to check what pressure you have running into the filter. There is a clear window on the bowl for easy viewing of oil level. This is a must have for painting, sandblasting, and other compressed air uses to remove oil, and oil aerosols from your compressed air. Replacement filters are available when needed. Contact us at anytime!

Specifications:

1" Inlet Port

1" Outlet Port

200 SCFM Max Flow

.01 MICRON FILTER

Aluminum Bowl

225 MAX PSI

Sturdy Metal Construction

Easy Twist Drain

Brand new 1" NPT compressed air moisture filter desiccant dryer unit. Also included is two refills of desiccant beads. This filter / desiccant dryer removes water, oil and humidity from compressed air. The desiccant bead dryer will remove water and humidity in the compressed air. These desiccant beads change color from blue to a light pink when they are saturated and need to be changed. This has a heavy duty aluminum quick release bowl for easy maintenance that provides easy viewing for contents as well as impact protection.

More replacement desiccant beads are available in our (Regulators, Filters & Oilers) ebay store category.

Great for painting, plasma cutters, sandblasting and more!

Specifications:

Max pressure: 225 PSI / 15.5 Bar

Air inlet and outlet: 1" Female NPT

Total filter Width: 4.5" x 3.5" with Wall Mounting Bracket

Total filter height: 10-1/8"

Filter is directional flow and is marked; each port is marked In & Out.

Application

l      Paint Spray Gun (gravity, siphon, and pressure feed styles)

l      Air measuring instruments (requiring clean, dry air)

Function

l      Coalescing filter - removes oil vapors, which can get past standard filters and water separators.

l      Desiccant dryer – reduces humidity in compressed air lines, a MUST HAVE for paint spraying operations.

Features

l      The Red Service Indicator will rise when filter element needs to be changed.

l      Desiccant beads change color from blue to pink when they to be changed or reactivated.

l      0.01μ filter element removes 99.9% of oil vapor particles.

l      Clear bowl with metal guards provides easy viewing for contents as well as providing impact protection.

l      Quick release bowl for easy maintenance

l      Additional filter after desiccant beads to insure clean downstream air.

Recommendations

l      It is recommended to install a standard air filter/water separator in front of the air cleaner / dryer to remove larger debris (>5μ)and condensed water.

l      It is also recommended to have a shutoff valve upstream of the air cleaner / dryer for easy depressurization for service.
