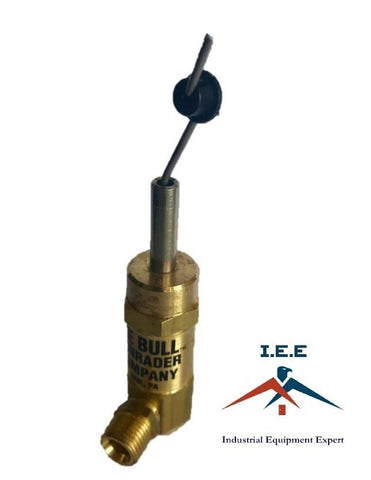

3" Bullwhip Throttle Control Cable Gas Air Compressor Unloader TCSA-H-5565-SCT

$17.99 USD

BRAND NEW!! MADE IN USA

Brand new Throttle Control Cable for Air Compressor with 36" BULLWHIP

This is for use on air compressors 6.5 HP and Less. (if your app calls for more than 6.5hp, check out our larger style bullwhips)

CHECK OUT OUR FULL LINE OF PILOTED UNLOADERS & DISCHARGE UNLOADERS DESIGNED TO WORK WITH THESE WHIPS.

Brand new 36" long throttle control cable. This is commonly known as a "Bullwhip" and is produced by Conrader Valves and is made in the U.S.A. This valve controls the engine throttle speed on gas powered air compressors when used in conjunction with a pilot / unloader valve. This is the standard size valve that controls engines 6.5 HP or smaller. This valve has 1/8" NPT male pipe threads that go into the unloader / pilot valve on the compressor.


Specifications:

Cable Length: 36"

Valve Thread Size: 1/8" Male NPT

1/8" Male NPT Threads

For Use With Compressors Up To 6.5 Horsepower

Cable (BULLWHIP) style throttle controls are used to control engine speed.  The cylinder end of the throttle control is screwed directly into an unloader device via the 1/8 in. port. While the other end is inserted into the throttle arm and mounted at the throttle plate. the perminently lubricated cable is self cleaning, and is protected using routing clamps.



This particular style throttle control cable is used on compressors with external unloading devices and engines 6.5hp and below.
