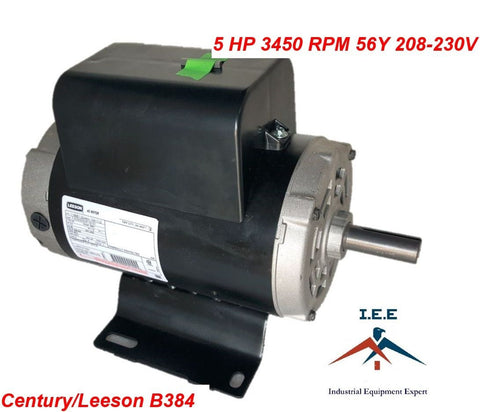

5HP 3450 RPM Air Compressor Electric Motor 208-230 Volts ~NEW~ Century # B384
$347.99 USD
Related Categories:
Leeson/Century Electric Motor
5 HP 3450 RPM Air Compressor Electric Motor 60 Hz 208-230 Volts Century B384 56Y
Air Compressor Motor, Capacitor-Start/Run, Open Dripproof, 5 HP, Nameplate RPM 3450, 56Y Frame, Voltage 208-230, 60 Hz, 1 Phase, Full Load Amps 22.0, Rigid Base Motor Mounting Type, Motor Thermal Protection Manual, Ins. Class B, 1.15 Motor Service Factor, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Shaft Design Keyed, Overall Length 14-5/8 In., Shaft Dia. 7/8 In., Shaft Length 2-1/4 In.
| Brand: |
CENTURY |
||
| Thermal Protection: | Manual | MPN: |
B384 |
| Max. Ambient Temp.: | 40 Degrees C | NumberOfItems: | 1 |
| RPM Range: | 3001-3600 | Overall Length: | 14-5/8" |
| Shaft Dia. (In.): | 7/8 | Mounting: | Base |
| Nameplate RPM: | 3450 | Voltage: | 208-230 |
| Rotation: | CCWSE | Bearings: | Ball |
| Enclosure: | Open Dripproof | Hz: | 60 |
| Frame: | 56Y | Phase: | 1 |
| Ins. Class: | B | Duty: | Continuous |
| Motor Application: | Air Compressor | HP: | 5 |
| Motor Bearings: | Ball | Full Load Amps: | 22.0 |
| Motor Design: | Capacitor-Start/Run | Motor Type: | Capacitor-Start |
| UPC: |
786674012401 |
Brand new Century 5 horse power electric motor. This is a 208/230 volt electric motor with a shaft that will rotate at 3450 RPM (revolution per min). This motor has a 7/8" diameter keyed shaft. This induction electric motor is typically used for workshop machinery such as air compressors, drill presses, table saws, jointers, shapers, and lathes these are just a few uses for this electric motor.
Specifications:
-5 HP
-3450 RPM
-208-230V
-Open Drip-proof
-56Y Frame
-Ball Bearings
-Rotation: CCW
-60Hz
-SF: 1 Protection
-Full Load amps: 22
-Shaft: 7/8" Diameter
-182T and 184T mounting holes
-4.5" shaft Height
