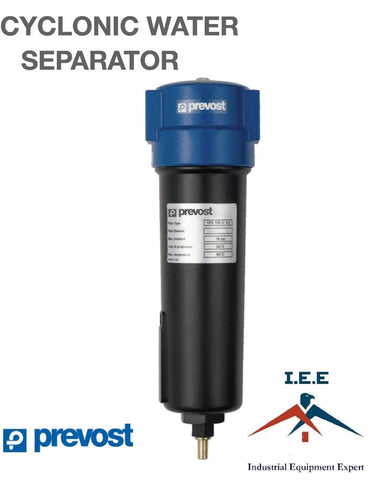

Prevost 1'' FNPT Cyclonic Water Separator W/ Float Drain 215 CFM SPC 365T

•  Max operating pressure :232 psi
•  Temperature :+34°F to +149°F
•  Construction :Anodised Aluminium
•  Equipped with :Automatic float drain

215 SCFM!

Water is one of the main contaminants of compressed air. The cyclone separator is specially designed for the efficient separation and elimination of the largest solid particles as well as water droplets in compressed air. Inside the tank, a fin system drives the compressed air in a rotational movement. Particulate matter is projected against the walls of the tank, under the effect of centrifugal force, then guided towards the base. Condensates are then drained via the automatic float drain.

Advantages • Sturdy construction • Efficient separation of air and water • Cost-effective and dependable operation • Applications for flow rates from 91 to 753 Scfm and for all industries. Efficiency • Greater than 98% at nominal flow rate and at 7 bar, temperature 20°C, particle size from 10 μm to 50 μm. Classification according to ISO 8573-1 Water: Class 8

Typical applications for the SPC separator: - compressor outlet - tank outlet - prefilter for refrigerated dryers - prefilter for submicron filters

• Max. pressure:..............................................0 - 16 bar • Temperature: ....................................+ 1,5° C to 65° C • Body construction: .......................Anodised aluminium • External coating:..............Polyester-based epoxy paint • Tank gasket material:........................................... NBR • Cyclone component:......... PA6 30% glass fibre, Steel • Separation:.......Greater than 98% at nominal flow rate and at 7 bar, temperature 20°C, particle size from 10 μm to 50 μm.

Note: Separators and filters do not achieve totally water-free air. It is essential to use a compressed air dryer to eliminate water from the air.
