WEG 10 HP Single Phase 1750 RPM Air Compressor Duty Electric Motor 215T Frame
WEG 10 HP Single Phase 1750 RPM Air Compressor Duty Electric Motor 215T Frame WEG 10 HP Single Phase 1750 RPM Air Compressor Duty Electric Motor 215T Frame WEG 10 HP Single Phase 1750 RPM Air Compressor Duty Electric Motor 215T Frame WEG 10 HP Single Phase 1750 RPM Air Compressor Duty Electric Motor 215T Frame WEG 10 HP Single Phase 1750 RPM Air Compressor Duty Electric Motor 215T Frame

WEG 10 HP Single Phase 1750 RPM Air Compressor Duty Electric Motor 215T Frame

$1,049.00 USD

Tags: Weg motor

ndustrial Equipment Expert, LLC

Industrial Equipment Expert is a Leading provider of Quality industry equipment such as air compressor, motors, engine, filter system, dryer, pump, airbrush, belt, accessories and parts, drywall tools, etc.

We are known for 100% service satisfactory and fast shipping. Please visit our stores for all the available products we have and we do both Retail and Wholesale for our products.



If you use Best Offer Option or have any question about the item and like to get discount on more order quantities. Please google Industrial Equipment Expert for inqueries. We will do our best to provide the lowest price possible depends on locations.



For quick questions for the item, feel free to use ebay communication system.



I.E.E Industrial Equipment Expert



10 HP 215T Single Phase 1720 RPM WEG Electric Motor

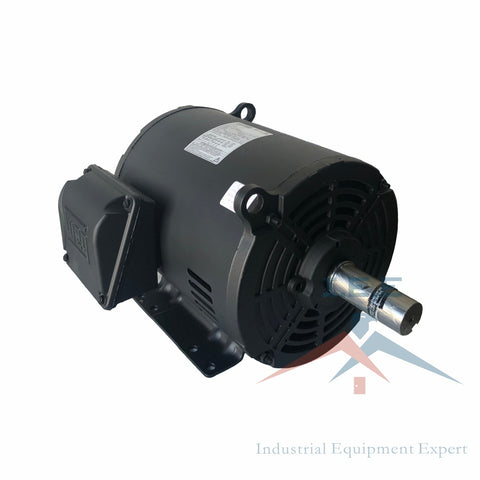

This listing is for a brand new WEG 10 horsepower air compressor motor model number 01018OS1CCD215T, this motor is 208-230 volt, 44.2-40.00 AMPS, 60 Hz, 215T Frame, single phase, 1-3/8" diameter shaft, and 1720 RPM. This motor is specifically designed for use with air compressors to meet start up load / torque specifications. This can replace a higher rpm motor, you will just have to use a larger pulley to make up the RPMs on your compressor. If you have any questions about this motor or if it will work as a replacement on your compressor feel free to contact us.

Specifications

• Frame: 215T
• Output: 10 HP
• Frequency: 60 Hz
• Rated Speed: 1720 RPM
• Rated Voltage: 208-230 Volts
• Rated Current: 44.2-40.00 Amps
• Service Factor: 1.15 (1.00 at 208V)
• Ambient Temperature: -20°C to +40°C
• Enclosure: ODP
• Rotation: CCW
• Approx. Weight: 139lbs
• Shaft Diameter: 1-3/8"
• Shaft Length: 3-1/4"

"THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES"

This motor has a 1 year limited manufacturer's warranty and also a 30 day warranty
Frame 215T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1720 rpm
Slip 4.44 %
Rated voltage 208-230 V
Rated current 44.2-40.0 A
L. R. Amperes 274-248 A
LRC 6.2x(Code G)
No load current 5.20-5.80 A
Rated torque 30.1 ft.lb
Locked rotor torque 280 %
Breakdown torque 210 %


Locked rotor time 10s (cold) 6s (hot)
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 59.0 dB(A)
Approx. weight³ 155 lb





Frame 215T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1720 rpm
Slip 4.44 %
Rated voltage 208-230 V
Rated current 44.2-40.0 A
L. R. Amperes 274-248 A
LRC 6.2x(Code G)
No load current 5.20-5.80 A
Rated torque 30.1 ft.lb
Locked rotor torque 280 %
Breakdown torque 210 %
Locked rotor time 10s (cold) 6s (hot)
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Approx. weight³ 155 lb
