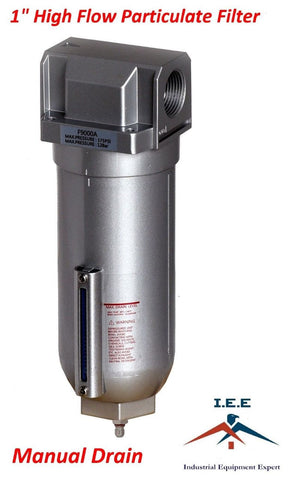

1" High Flow Particulate filter moisture compressed air compressor Manual Drain

$74.35 USD

  • BRAND NEW !!!

    New 1" High Flow Compressed air line Filter seperator/Particulate Filter. This filter removes liquid and debris from your compressed air line to extend the life of your tools and compressor accessories.

    Manual Drain

    185 CFM Flow Rate

    1" FPT Air Inlet port                 1" FPT Air Outlet port

    5 micron filter element.

    Wall mounting bracket included

    Sight Glass on Metal bowl to view your moisture level & Manual drain

    250 PSI Max Input pressure

    Drain capacity 300ml

    Oil capacity 350ml

    Compressed air filters protect your equipment from dust, dirt, oil and water. Dust will wear down your equipment (like the air motor in grinders, pneumatic actuators and it can make pneumatic control valves get stuck.



    Especially when the dirt and dust is combined with oil (which is often the case with compressors), a sticky mess can form inside valves, motors and other compressed air equipment.


  • 3/4" Compressed Air Moisture Filter Regulator Oiler Separator Lubricator Combo Manual Drain

    Brand new in line compressed air moisture filter, regulator, lubricator combo. This is a high quality unit that gives you the power to keep moisture out of your air lines, regulate air pressure, and lubricate your air lines all at once! This is a perfect set up for when you do not have a lot of room to add all of these components individually. This has 3/4" female NPT input as well as a 3/4" female NPT output port. This assembly has a 140 CFM max flow rate and comes equipped with a pressure gauge. You can adjust the regulated pressure between 7 - 160 PSI with a 225PSI max PSI. The moisture filter features a 5 micron filter, 2.7 oz bowl capacity, as well as a visual sight glass to easily monitor the moisture level. The lubricatior has a 5.1 oz oil capacity with a visual sight glass to easily monitor levels.

    The compact design of this combo makes for convenient and easy installation and comes standard with an attached wall mounting bracket. Overall this unit measures 6" Long x 3.5" Wide x 10.75" Tall at the widest points.



    Specifications:



    225 PSI Max Pressure

    140 CFM Max Flow Rate

    5 Micron Filter (2.7 oz capcity)

    Regulate between 7-160 PSI

    5.1oz Oil Capacity

    Compact Space Saving Design

      TYPE DESCRIPTION

    FRL704

    FRL706

    Port Size (PT, NPT)

    1/2”

    3/4”

    Filter Element

    5μ

    Max Input Pressure (PSI)

    250

    Max Output Pressure (PSI)

    7 ~ 215

    Max Flow (l/min)

    4000

    Operating Temperature Range ( ℃ )

    5 ~  60℃

    Drain Capacity (ml)

    80 ml

    Oil Capacity (ml)

    150 ml

    Recommendable Lubricants

    ISO VG-32

    MORE OPTIONS

    Air Filter

    F704

    F706

    Regulator

    R704

    R706

    Air Filter  + Regulator

    FR704

    FR706

    Lubricator

    L704

    L706
