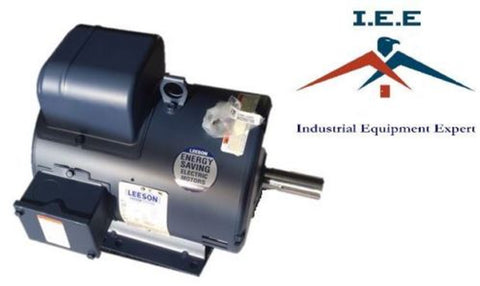

10hp 1725 RPM 215T Frame 230 Volts Open Drip Leeson Electric Motor # 140311
$883.99 USD
Related Categories:
Leeson/Century Electric Motor
BRAND NEW!!!.... Full Manufacturers warranty in the box
FREE SHIPPING!!
BRAND NEW H/D LEESON ELECTRIC MOTOR.
PLEASE LEAVE CONTACT NUMBER AT TIME OF PURCHASE!!
Listing is for a brand new in box Leeson 10HP Compressor Motor 140311 with the following specs below.
- 10 hp 1725 RPM, 43.0 amps 230 Volts 60hz. single Phase Motor
- NEMA 215T Frame Keyed Shaft 1 3/8" Diameter x 4 3/8"
- Service Factor: 1.15 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
- 1 Year Manufacture Warranty
| Volts | 230 | Volts | Volts | ||
| F.L. Amps | 43 | F.L. Amps | F.L. Amps | ||
| S. F Amps | 54 | S. F Amps | S. F Amps | ||
| RPM | 1800 | Hertz | 60 | ||
| HP | 10 | Duty | CONTINUOUS | TYPE | KD |
| KW | 7.46 | ||||
| Frame | 215TZ | Serv. Factor | 1.25 | Phase | 1 |
| Max Amb | 40 | Design | L | Code | G |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 81.5 | Eff 75% | PF | 92.5 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6206 |
| CC Number | CE | No | Bearing PE | 6207 | |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 159 LB | Enclosure | DP | Lubrication | POLYREX EM |
| Nameplate | 081285 | Mounting | RIGID | Rotation | SELECTIVE CCW |
| Assembly | 210-006.03 | Shaft Dia. | 1 3/8 IN | Ext. Diag. | 005077.10 |
| Cust Part No | Outline | OL140311 | Ext. Diag2 | ||
| Packaging | B | Outline Dash No | Winding | K9415 | |
FREE STANDARD UPS SHIPPING FOR LOWER 48 STATES!
