2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8
2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8 2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8 2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8 2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8

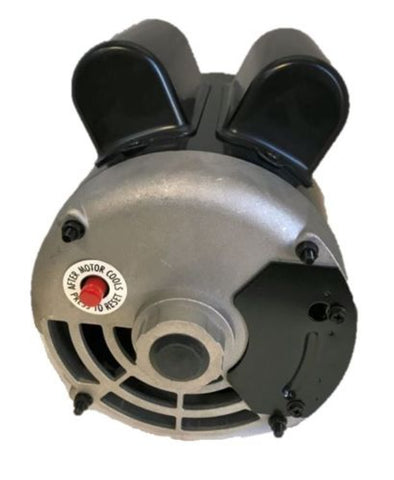

2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8" Shaft 120/240 V

$151.99 USD

Related Categories: Other Electric Motor

Tags: Other electric motor

2 HP SPL 3450 RPM 56 Frame 120/240V 15/7.5Amp 5/8" Shaft Single Phase NEMA Motor

Instapak® FOAM IN PLACE PACKING. guaranteed DAMAGE FREE

2 HP SPL 3450 RPM, 56 Frame, 120/240V, 15/7.5Amp 5/8" Shaft, Single Phase NEMA Air Compressor Electric Motor - EM-02

  • Open dripproof
  • Single phase Full Load amps: 15/7.5Amp, 120/240V
  • 2 HP SPL 3450 RPM
  • 5/8 Shaft in.
  • NEMA

Features: Reduced starting amperage design to ensure the reduced voltage starting at rated load. Equipped with UL approved Manual thermal overload, capacitors and high quality ball bearings to ensure the lifetime. Open drip-proof is better used in environment that are relatively clean and dry environments. Special design for Air Compressor duty. CCW only.

Brand new 2 hp 120 / 240 volt compressor duty electric motor. This motor features a 56 frame with a 5/8" diameter shaft and is 3450 RPM. This is a non-reversible motor and features counter-clockwise (CCW) rotation facing the shaft. This is a high quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications. Wiring diagram is listed on the side of the motor for reference. Below is a full list of specifications.

Specifications:

  • Open Drip Proof (ODP)
  • Single Phase
  • 2 HP
  • 3450 RPM
  • 60hz
  • 120 / 240 Volts
  • AMB 40 °C
  • Frame: 56
  • Duty: Cont. Compressor
  • Service Factor: 1.0
  • Full Load Amps: 15 / 7.5
  • INS.CL: F
  • Non-reversible, CCW Rotation Facing Shaft
  • Thermally Protected
  • Overall Length W/O Shaft: 9.75"
  • Overall Length With Shaft: 12.3"
  • Overall Height: 8.5"
  • Overall Width: 6.35"
  • Shaft Diameter: 5/8"
  • Shaft Length: 2.55"
  • Standard Size Keyway: 3/16"
  • Features Manual Reset Overload Protection
