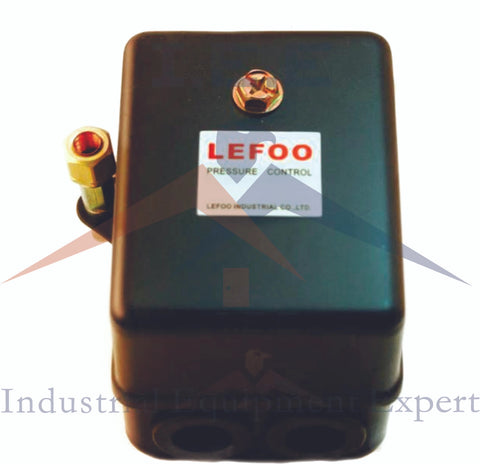

Lefoo LF17-H1 Heavy Duty Metal Housing Replacement Air Compressor Pressure Switch,1 port, 140 - 175 PSI

Air Compressor Pressure Switches

For all global air compressor applications.

LF 17 Single Port Series (LF17-H1)

UL Listed and CSA Certified.

DPST switch

Rated 24A @ 120V

Rated 20A @ 240V

Temp. range: -22° to 257°F

Pressure Switch, Air Compressor, Standard Action, Factory On/Off Set 145 to 175 PSI, Pressure Range 40 to 250 PSI, Burst Pressure 500 PSI, Port Type 1-Port 1/4 In NPT (Female), 1/4" Compression Unloader, Diaphragm Actuation Type, Single Phase, DPST Contact Type, 20-24 Amps, NEMA 1 Enclosure, Temp Range -22 to 257 F, Standards UL/CSA

TYPE Air Compressor

ITEM Pressure Switch

ACTION Standard

FACTORY ON/OFF SETTING (PSI) 145 to 175

PRESSURE RANGE (PSI) 40 to 250

DIFFERENTIAL RANGE (PSI) 20 to 60

BURST PRESSURE (PSI) 500

NUMBER OF PORTS 1

PORT TYPE 1-Port 1/4" NPT (Female)

UNLOADER 1/4" Compression

ACTUATION TYPE Diaphragm

PHASE Single

CONTACT TYPE DPST

AMPS 20-24

HP @ 1 PHASE - 120V 2

HP @ 1 PHASE - 240V 3

ENCLOSURE NEMA 1

TEMP. RANGE (F) -22 to 257

STANDARDS UL/CSA

SERIES LF17

WEIGHT 1.850000
