25 AMP Air Compressor Pressure Switch 4 Port 95 -125 PSI w/ Gauge pop off valve
25 AMP Air Compressor Pressure Switch 4 Port 95 -125 PSI w/ Gauge pop off valve 25 AMP Air Compressor Pressure Switch 4 Port 95 -125 PSI w/ Gauge pop off valve

25 AMP Air Compressor Pressure Switch 4 Port 95 -125 PSI w/ Gauge pop off valve

$30.49 USD

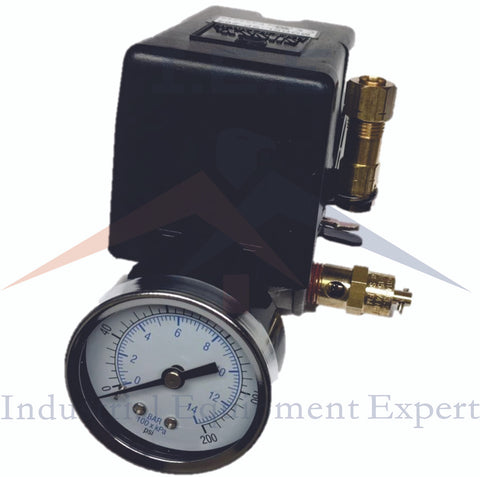

Sunny 25 AMP Air Compressor Pressure Control Switch 4 Ports 95-125 PSI w/ 0-200 Pressure Gauge and 165 PSI Pop off valve

Brand New Sunny Heavy Duty Pressure Control Switch, L4, 4 port, 95-125 PSI, 25 Amp



This is a great replacement / upgrade switch for Furnas, Square D, Sunny, Lefoo, and many more! This is a universal switch that will work as long as the PSI is close enough to be adjusted to whatever you need.



Brand: Sunny ( Taiwan ROC)



  • Air Compressor Pressure Switches
  • For all global air compressor and water applications. Diaphragm actuated.
  • Model SP-204
  • UL Listed and CSA Certified.
  • DPST switch
  • Rated 25A
  • Temp. range: -22° to 257°F

Pressure Switch, Air Compressor, Standard Action, Factory On/Off Set 95 to 125 PSI, Pressure Range 60 to 200 PSI, Adjustable Differential, Differential Pressure 28 to 40 PSI, Burst Pressure 500 PSI, Port Type 4-Port 1/4 In NPT (Female), 1/4 In Compression Unloader, Diaphragm Actuation Type, Manual Switch Action Auto/ Off, Single Phase, DPST Contact Type, 25 Amps, NEMA 1 Enclosure, Temp Range -22 to 257 F, Standards UL/CSA



TYPE

Air Compressor

ITEM

Pressure Switch

ACTION

Standard

FACTORY ON/OFF SETTING (PSI)

95 to 125

PRESSURE RANGE (PSI)

60 to 200

DIFFERENTIAL

Adjustable

DIFFERENTIAL PRESSURE (PSI)

28 to 40

BURST PRESSURE (PSI)

500

NUMBER OF PORTS

4

PORT TYPE

4-Port 1/4" NPT (Female)

UNLOADER

1/4" Compression

ACTUATION TYPE

Diaphragm

MANUAL SWITCH ACTION

Auto/ Off

PHASE

Single

CONTACT TYPE

DPST

AMPS

25

HP @ 1 PHASE - 120V

2

HP @ 1 PHASE - 230V

3

ENCLOSURE

NEMA 1

TEMP. RANGE (F)

-22 to 257

STANDARDS

UL/CSA

SERIES

SP-204

WEIGHT

0.850000
