5 HP Air Compressor Duty Electric Motor 184T Frame 1750 RPM Single Phase WEG New
5 HP Air Compressor Duty Electric Motor 184T Frame 1750 RPM Single Phase WEG New 5 HP Air Compressor Duty Electric Motor 184T Frame 1750 RPM Single Phase WEG New 5 HP Air Compressor Duty Electric Motor 184T Frame 1750 RPM Single Phase WEG New

5 HP Air Compressor Duty Electric Motor 184T Frame 1750 RPM Single Phase WEG New

$660.00 USD

Tags: Weg motor

Industrial Equipment Expert, LLC



Industrial Equipment Expert is a Leading provider of Quality industry equipment such as air compressor, motors, engine, filter system, dryer, pump, airbrush, belt, accessories and parts, drywall tools, etc.



We are known for 100% service satisfactory and fast shipping. Please visit our stores for all the available products we have and we do both Retail and Wholesale for our products.



If you use Best Offer Option or have any question about the item and like to get discount on more order quantities. Please google Industrial Equipment Expert for inqueries. We will do our best to provide the lowest price possible depends on locations.



For quick questions for the item, feel free to use ebay communication system.



I.E.E Industrial Equipment Expert

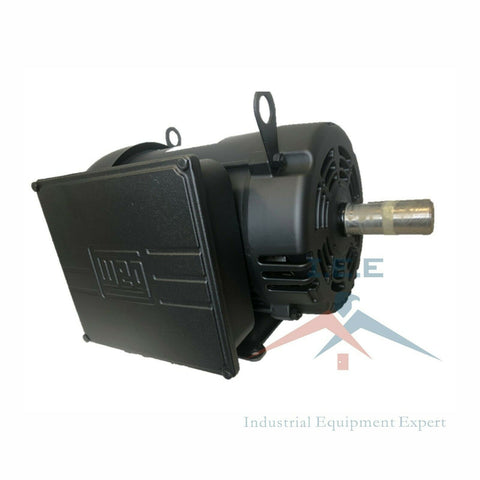

5 HP 184T Single Phase 1750 RPM WEG Electric Motor

This listing is for a brand new WEG 5 horsepower air compressor motor model number 00518OS1CCD184T, this motor is 208-230 volt, 23-20.5 full load AMPS, 60 Hz, 184T Frame, single phase, 1 1/8" diameter shaft, and 1750 RPM. This motor is specifically designed for use with air compressors to meet start up load / torque specifications. This motor can rotate in either direction. This can replace a higher rpm motor, you will just have to use a larger pulley to make up the RPMs on your compressor. If you have any questions about this motor or if it will work as a replacement on your compressor feel free to contact us.

Specifications

• Frame: 184T
• Output: 5 HP
• Number of Poles: 4
• Frequency: 60 Hz
• Rated Speed: 1750 RPM
• Slip: 2.78%
• Rated Voltage: 208-230 Volts
• Rated Current: 23/20.5 Amps
• Rated Torque: 14.8 FT. LB.
• Locked Rotor Torque: 254%
• Breakdown Torque: 250%
• Locked Rotor Time: 10s (Cold) / 6s (Hot)
• Insulation Class: F
• Temperature Rise: 80 K
• Service Factor: 1.25 (1.00 at 208V)
• Starting Method: Direct on Line
• Ambient Temperature: -20°C to +40°C
• Degree of Protection: IP22
• Enclosure: ODP
• Rotation: Both (CW and CCW)
• Approx. Weight: 96.2 lb
• Shaft Diameter: 1-1/8"
• Shaft Length: 2-3/4"


"THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES"

This motor has a 1 year limited manufacturer's warranty and also a 30 day warranty directly through Indutrial equipment Expert
