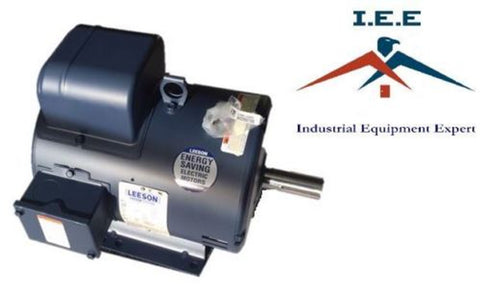

7.5 HP 1740 RPM 215T Single Phase Leeson Compressor Motor # 140155
$889.00 USD
Related Categories:
Leeson/Century Electric Motor
BRAND NEW!!!.... Full Manufacturers warranty in the box
FREE SHIPPING TO LOWER 48 STATES
BRAND NEW H/D LEESON ELECTRIC MOTOR. MADE IN THE USA
This is a TRUE 7.5hp H/D Electric Motor that weighs 113 lbs.
7.5HP.... SINGLE PHASE...230 VOLT.....215T FRAME.....1725RPM.....1 3/8" SHAFT DIAMETER ..... REVERSABLE SHAFT.... 1.15 SERVICE FACTOR
This Heavy Duty motor weighs 113lbs, and is good up to 36 F.L amps @ 230Volts
| Engineering Data | |||||
| Volts | 230 | Volts | Volts | ||
| F.L. Amps | 36 | F.L. Amps | F.L. Amps | ||
| S. F Amps | 40.5 | S. F Amps | S. F Amps | ||
| RPM | 1800 | Hertz | 60 | ||
| HP | 7.5 | Duty | CONTINUOUS | TYPE | KD |
| KW | 5.60 | ||||
| Frame | 215T | Serv. Factor | 1.15 | Phase | 1 |
| Max Amb | 40 | Design | L | Code | G |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 81.5 | Eff 75% | PF | 83 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6206 |
| CC Number | CE | No | Bearing PE | 6207 | |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 116 LB | Enclosure | DP | Lubrication | POLYREX EM |
| Nameplate | 081285 | Mounting | RIGID | Rotation | SELECTIVE CCW |
| Assembly | 210-006.03 | Shaft Dia. | 1 3/8 IN | Ext. Diag. | 005077.10 |
| Cust Part No | Outline | 037602-1200 | Ext. Diag2 | ||
| Packaging | B | Outline Dash No | Winding | K9416 | |
| Carton Label | Leeson Gen Purpose | GROUP: | 2 | ||
| Iris | Paint | STANDARD | Test Card | 01 | |
