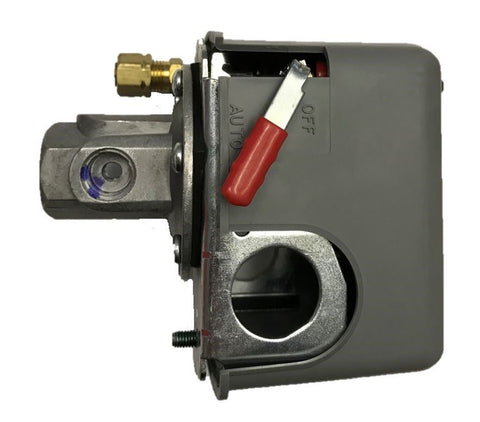

9013FHG-54J59M1X Square D Pressure Switch, with Lever and Unloader 135/175 PSI
$153.99 USD
Brand new Square D brand, Pumptrol air compressor pressure switch, model: 9013FHG54J59M1X 135-175 PSI with unloader control valve and On / Off switch.
This Square D Pumptrol 9013FHG54J59M1X air-compressor pressure switch controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 175 psi. The switch has a 4-way NPSC flange fluid connection and is suitable for use with a higher-horsepower motor with 2 hp or greater. The non-adjustable differential is 40 psi, and the adjustable cut-out range is 100-200 psi. The switch is diaphragm actuated and has a fixed differential. The threshold, or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections, and two 2-pole NC contacts open on rising pressure. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratories (UL) Listed and Canadian Standards Organization (CSA) certified. This switch includes a 2-way pressure release valve. The maintained manual cut-out lever has auto and off positions. Square D Pumptrol pressure switches are manufactured by Schneider Electric.
Product Features
|
Product Description
This Square D Pumptrol 9013FHG54J59M1X air-compressor pressure switch controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 175 psi. The switch has a 4-way NPSC flange fluid connection and is suitable for use with a higher-horsepower motor with 2 hp or greater. The non-adjustable differential is 40 psi, and the adjustable cut-out range is 100-200 psi. The switch is diaphragm actuated and has a fixed differential. The threshold, or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections, and two 2-pole NC contacts open on rising pressure. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratories (UL) Listed and Canadian Standards Organization (CSA) certified. This switch includes a 2-way pressure release valve. The maintained manual cut-out lever has auto and off positions. Square D Pumptrol pressure switches are manufactured by Schneider Electric.
Application: Used to Regulate the Tank Pressure Between Two Preset Values on Small Electrically Driven Air Compressors Up to 230 PSI, UL Listed CSA Certified RoHS Compliant, NEMA 1 Enclosure, Optional 3R Enclosure Available, Rated for Both 50/60Hz Operation, Auto - Off Disconnect Lever is Available for Manual Cut Off of the Compressor, 2 Way Pressure Relief Valve (Unloader) Releases Head Pressure On the Compressor Upon Cut Off At the Switch, 4 Port Manifold Provides a Means for Easy Mounting of Relief Valve and Gauge, Adjustable Cut Out Pressure, Fixed Differential, Contacts Open On Pressure Rise, Electrical Connection: 2 - 1/2 NPT Conduit Entries, 1/4 FNPT Standard, Other Options Available, Diaphragm Actuated, 2 Pole Snap Action Contacts, Feature Drift Proof Cut In and Cut Out Settings, Easy Inspection With Vertical Contacts, Extra Strong Frame That Resists Distortion When Mounting the Switch to a Compressor, Temperature Range : -22°F to 257°F
