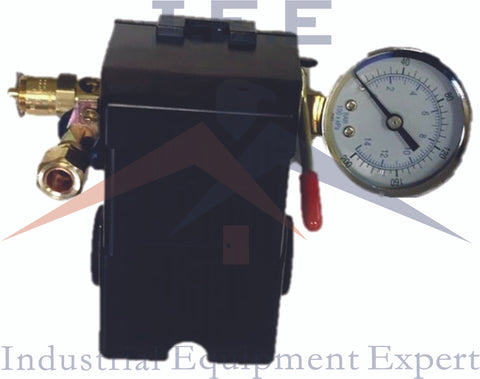

Air Compressor Pressure Switch set 4 Port 95-125 PSI w/ S Gauge w/ Safety valve
$27.89 USD
H/D PRESSURE SWITCH AIR COMPRESSOR 90-125 4 PORT 26 AMP w/ Gauge & Pop off valve
0-200 PSI Pressure Gauge 150 PSI Pop off valve
HEAVY DUTY 26 AMP PRESSURE SWITCH
Lefoo AIR COMPRESSOR CONTROL VALVE LF10A-L4,Four port, 95-125 PSI 26 AMP
AMP RATING: 26 AMPS SINGLE PHASE OR THREE PHASE, 110/230
- Air Compressor Pressure Switches
- For all global air compressor applications.
- LF 10A Four Port Series (LF10A-L4)
- UL Listed and CSA Certified.
- DPST switch
- Rated 26 Amps
- Temp. range: -22° to 257°F
Pressure Switch, Air Compressor, Standard Action, Factory On/Off Set 95 to 125 PSI, Pressure Range 35 to 150 PSI, Burst Pressure 500 PSI, Port Type 4-Port 1/4 In NPT (Female), 1/4" Compression Unloader, Diaphragm Actuation Type, Manual Switch Action Auto/ Off, Single Phase, DPST Contact Type, 26 Amps, NEMA 1 Enclosure, Temp Range -22 to 257 F, Standards UL/CSA
|
TYPE |
|
|
ITEM |
|
|
ACTION |
|
|
FACTORY ON/OFF SETTING (PSI) |
|
|
PRESSURE RANGE (PSI) |
|
|
BURST PRESSURE (PSI) |
|
|
NUMBER OF PORTS |
4 |
|
PORT TYPE |
|
|
UNLOADER |
|
|
ACTUATION TYPE |
|
|
MANUAL SWITCH ACTION |
|
|
PHASE |
|
|
CONTACT TYPE |
|
|
AMPS |
26 |
|
HP @ 1 PHASE - 120V |
2 |
|
HP @ 1 PHASE - 230V |
|
|
ENCLOSURE |
|
|
TEMP. RANGE (F) |
|
|
STANDARDS |
UL/CSA |
|
SERIES |
LF10 |
|
WEIGHT |
0.850000 |
