New Carry Tank manifold for portable compressed air tanks.

1/2" Male NPT inlet x 1/8" Female NPT outlet

Gauge port 1/8"

safety relief valve set at 130 psi.

MADE IN THE USA

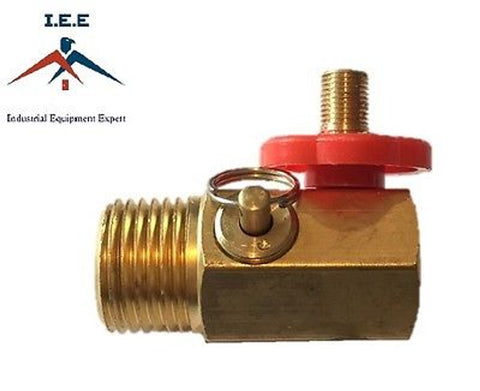

Brand new Compressed Air Bubble Manifold Valve with relief. This valve has a 1/2" Male NPT thread which screws into the tank. (Note: 1/2" threads measure about 3/4" in diameter, if needed these threads can be reduced or enlarged with a reducer.) This valve is great for a replacement of an existing valve and also works great if you're making an air storage tank out of a compressor tank.

This valve is equipped with a 1/4" Female NPT port for an air hose as well as a 1/8" Female NPT port for an air gauge, and a Schrader tire fill valve on the side (as shown) for filling the air bubble. The red knob connected to this valve allows you to easily turn on / off the air flow to the air hose. This manifold features a 130 PSI safety relief valve also known as a pop off.

Includes a Tank Filler Valve into the Built In Shut Off Valve

Mates to a Typical Tire Chuck for Easy Tank Pressurization

Safety  Valve is Factory Preset at 150 PSI

Includes Tank Pressure Gauge Port

Construction:  Brass Body & Components, Stainless Steel
Springs, Nitrile O-Rings & Silicone Rubber Safety Valve Seals

Specifications:

Solid Brass Construction

1/2" MNPT Tank Inlet

1/4" FNPT Air Hose Connection

1/8" FNPT Gauge Connection

Red Air Flow Control Knob

Schrader (Tire) Fill Up Valve

Relief Valve - 130 PSI

Please contact us if you need more than one. We offer discount on higher quantities.
