WEG 10 HP 3 Phase 1750 RPM Electric Motor Air Compressor Duty 213 / 215T Frame
WEG 10 HP 3 Phase 1750 RPM Electric Motor Air Compressor Duty 213 / 215T Frame WEG 10 HP 3 Phase 1750 RPM Electric Motor Air Compressor Duty 213 / 215T Frame WEG 10 HP 3 Phase 1750 RPM Electric Motor Air Compressor Duty 213 / 215T Frame WEG 10 HP 3 Phase 1750 RPM Electric Motor Air Compressor Duty 213 / 215T Frame WEG 10 HP 3 Phase 1750 RPM Electric Motor Air Compressor Duty 213 / 215T Frame WEG 10 HP 3 Phase 1750 RPM Electric Motor Air Compressor Duty 213 / 215T Frame WEG 10 HP 3 Phase 1750 RPM Electric Motor Air Compressor Duty 213 / 215T Frame

WEG 10 HP 3 Phase 1750 RPM Electric Motor Air Compressor Duty 213 / 215T Frame

$738.99 USD

Tags: Weg motor

Industrial Equipment Expert is a Leading provider of Quality industry equipment such as air compressor, motors, engine, filter system, dryer, pump, airbrush, belt, accessories and parts, drywall tools, etc.



We are known for 100% service satisfactory and fast shipping. Please visit our stores for all the available products we have and we do both Retail and Wholesale for our products.



If you use Best Offer Option or have any question about the item and like to get discount on more order quantities. Please google Industrial Equipment Expert for inqueries. We will do our best to provide the lowest price possible depends on locations.



For quick questions for the item, feel free to use ebay communication system.




10 HP 213/5T Frame Three Phase 1770 RPM WEG Electric Motor

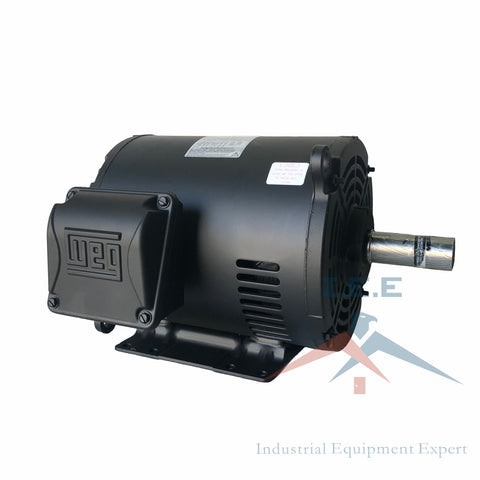

This listing is for a brand new WEG 10 horsepower air compressor motor model number 01018OT3E215T-S. This motor is 208-230/460 volt, 27.4-24.8/12.4 AMPS, 60 Hz, 213/5T Frame, three phase, 1-3/8" diameter shaft, and 1770 RPM. It is specifically designed for use with air compressors to meet start up load / torque specifications. This motor can rotate in either direction. This can replace replace motors rated for different RPMs, you will just have to use a different sized pulley to make up the RPM difference on your compressor. If you have any questions about this motor or if it will work as a replacement on your compressor feel free to contact us.


Product Details

A 3-phase AC motor provides greater operating versatility than a standard, single-phase motor. Take a look at the features for Weg General Purpose Motor. Voltage: 208-230/460, Hp: 10, Rpm Range: 1701-1800.


Specifications

• Frame: 213/5T
• Output: 10 HP
• Frequency: 60 Hz
• Rated Speed: 1770 RPM
• Rated Voltage: 208-230/460 Volts
• Rated Current: 27.4-24.8/12.4 Amps
• Insulation Class: F
• Service Factor: 1.15 (1.00 at 208V)
• Ambient Temperature: -20°C to +40°C
• Enclosure: ODP
• Rotation: Both (CW and CCW)
• Approx. Weight: 115.10 lbs
• Approximate Shaft Length: 3-3/8"
• Approximate Shaft Diameter: 1-5/16"

"THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES"

This motor has a one-year limited manufacturer's warranty and also a 30-day warranty

Frame Material: Rolled Steel MPN:

01018OT3E215T-S

Manufacturers Warranty Length: 3 yr. NumberOfItems: 1
Duty: Continuous Overall Length: 17-3/4"
HP: 10 Green Environmental Attribute: Does Not Contain Formaldehyde
Full Load Amps: 27.4-24.8/12.4 Weight: 141
Number of Speeds: 1 Length: 23.300
Max. Ambient Temp.: 40 Degrees C Mounting: Rigid Base
RPM Range: 1701-1800 Width: 16.300
Length Less Shaft: 14-3/8" Voltage: 208-230/460
Nameplate RPM: 1770 Bearings: Ball
Rotation: CW/CCW Hz: 60
Motor Sub Application: Belt Dr Fan/Blower Phase: 3
