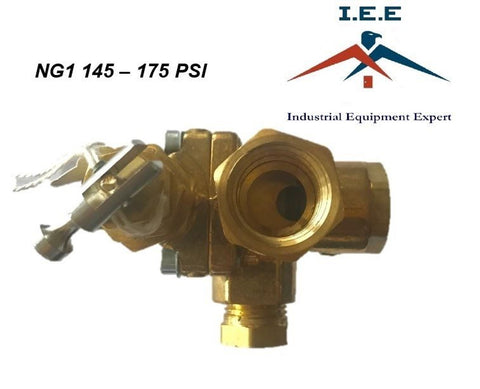

Made in USA!! NG1 145 - 175
Unloader valve (continuous run unloader) for gas & electric powered air compressors
145-175 factory setting. Pressure can be adjusted 30-40 psi up or down
1/2" Female Pipe Thread Inlet x 1/2" Female Pipe Thread outlet.
Includes complete with hand unloader and muffler/silencer.
30 scfm Rating
Continuous Run Air Compressor Piloted Discharge Check Valve
1/2" Female NPT Inlet x 1/2" Female NPT Pipe Thread Outlet

This piloted discharge check valve is a combination of a pilot valve, a pressure discharge valve, and check valve in one complete piece to make a constant run air compressor with gas engine or electric motor.

This valve will relieve the pressure the compressor is pumping out to the atmosphere through a silencer so the compressor can stay running without building pressure.

-Material: Machined Brass
-USA MADE
-1/2" Female NPT Pipe Thread Outlet To Tank
-1/2" Female NPT Thread Inlet
-1/8" NPT Female Pipe Thread Port For Throttle Control
-Factory Set At 145 PSI Cut In & 175 PSICut Out Pressure
-Pressure Can Be Adjusted 30-40 PSI Up or Down
-30 CFM Rating
-Equipped With A Manual Unloader Flip Valve At The Top Of The Unloader

Piloted discharge check valves combine a pilot valve, a discharge valve, and a check valve into one system used to run an air compressor at a constant speed. They are used on both gas engine and electric motor compressors.

Brand new!
