Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX200 lives up to the legend. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.



Common Applications

•Pressure washers

•Commercial lawn and garden equipment

•Tillers / cultivators

•Generators

•Construction / industrial equipment

•Agricultural equipment

•Small vehicles

•Water pumps

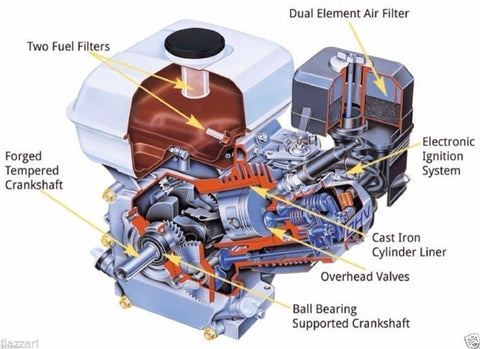

•Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency

•OHV design for increased efficiency and optimal power transfer

•High compression ratio for better fuel efficiency

•Precision engineered components result in lower vibration

•Ball bearing supported crankshaft for greater stability

•Large capacity, multi-chamber exhaust system

•Reduced mechanical noise due to light weight, noise-reducing materials

•Forged steel crankshaft and rigid crankcase

•Helical cut gears

•Sophisticated air intake system

•Oil Alert

•New carburetor chamber coating and carburetor filter help to protect against fuel impurities

•Cast iron cylinder sleeve

•High quality materials, fit, and finish

•Dual element air cleaner

•Fuel Valve

•3-Year Limited Warranty

•Simple throttle control

•Large fuel tanks

•Large automotive type fuel cap

•Dual oil drains and fill

•Easy, convenient, heavy duty control box

•Easily accessible spark plug

•Heavy duty recoil starter

•Ergonomic, easy to grip recoil rope design

•Automatic mechanical de-compression system

•Lower emissions, same power output!

•CARB and EPA certified

•No catalyst necessary

•Low profile versions

•Spark arrester available



Engine Type:  Air-cooled 4-stroke OHV

Bore x Stroke:  68 X 54 mm

Displacement:  196 cm3

Net Power Output:  6.5 HP (4.1 kW) @ 3,600 rpm

Net Torque:  9.1 lb-ft (12.4 Nm) @ 2,500 rpm

PTO Shaft Rotation:  Counterclockwise (from PTO shaft side)

Compression Ratio:  8.5:1

Carburetor:  Butterfly

Ignition System:  Transistorized magneto

Starting System:  Recoil Starter

Lubrication System:  Splash

Governor System:  Mechanical

Air cleaner:  Dual element

Oil Capacity:  0.63 US qt (0.6l)

Fuel Tank Capacity:  3.3 U.S. qts (3.1 liters)

Fuel:  Unleaded 86 octane or higher

Dry Weight:  35 lbs. (16.1 kg)
