PRESSURE SWITCH CONTROL AIR COMPRESSOR 140-175 PSI 4 PORT HEAVY DUTY 26 AMP
PRESSURE SWITCH CONTROL AIR COMPRESSOR 140-175 PSI 4 PORT HEAVY DUTY 26 AMP PRESSURE SWITCH CONTROL AIR COMPRESSOR 140-175 PSI 4 PORT HEAVY DUTY 26 AMP PRESSURE SWITCH CONTROL AIR COMPRESSOR 140-175 PSI 4 PORT HEAVY DUTY 26 AMP

PRESSURE SWITCH CONTROL AIR COMPRESSOR 140-175 PSI 4 PORT HEAVY DUTY 26 AMP

$14.99 USD

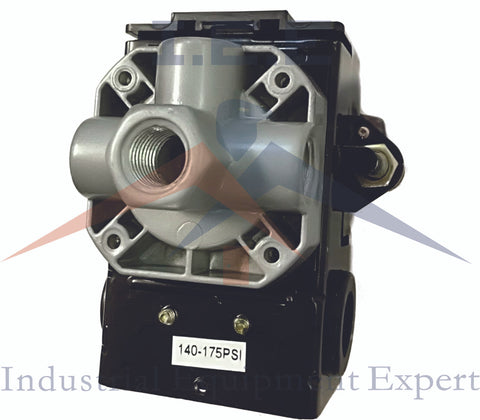

HEAVY DUTY 26 AMP PRESSURE SWITCH

THIS IS A BRAND NEW LeFOO PRESSURE SWITCH 140-175 PSI.  FOUR PORT 1/4" CONNECTION TYPE.

THIS SWITCH REPLACES FURNAS... SQUARE D ... AND MOST OTHER PRESSURE SWITCH MANUFACTURERS.

THIS SWITCH COMES WITH AN UNLOADER. ON/OFF LEVER NOT INCLUDED

WHY GO WITH A HEAVY DUTY PRESSURE SWITCH, RATHER THAN A STANDARD SWITCH?? THE REASON ARE THE PRESSURE SWITCH CONTACTS. GENERALLY SPEAKING, THE FIRST THING THAT BECOMES FAULTY ON PRESSURE SWITCHES THESE DAYS, ARE THE CONTACT POINTS WHERE YOUR MOTOR/STARTER CONNECTS. OVERTIME AND OVERUSE, THE CONTACTS BEGIN TO MELT TOGETHER, SOON AFTER SHORTING OUT THE PRESSURE SWITCH. BY GOING WITH A HEAVY DUTY PRESSURE SWITCH WITH A LARGER AMP RATING, THE CONTACTS ON THE SWITCH ARE DESIGNED TO HANDLE HIGHER AMP LOADS, THEREFORE ALLOWING THE CONTACTS TO LAST LONGER, WHICH IN TURN ALLOWS YOU PRESSURE SWITCH TO FUNCTION PROPERLY AND LAST A VERY LONG TIME.

PRESSURE:  140-175     PRESSURE SETTINGS ARE ADJUSTABLE.

MAX PRESSURE:  175 PSI

MIN ON:  50 PSI

DIFFERENTIAL:  30-40 PSI

PORT: 4 PORTS 1/4" (FEMALE NPT)

POLE:  2 POLE RATING
