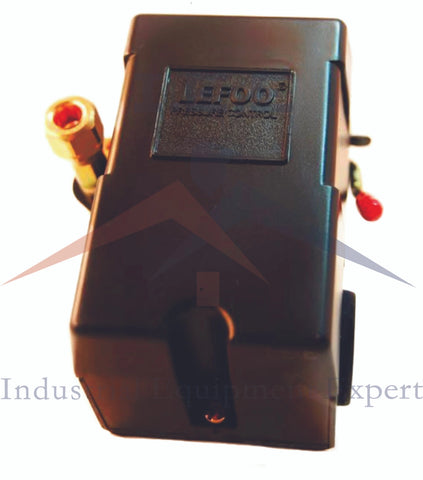

PRESSURE SWITCH CONTROL AIR COMPRESSOR 140-175 SINGLE PORT HEAVY DUTY 26 AMP
$15.88 USD
- Air Compressor Pressure Switches
- For all global air compressor and water applications. Diaphragm actuated.
HEAVY DUTY 26 AMP PRESSURE SWITCH
- Model SP-205
- UL Listed and CSA Certified.
- DPST switch
- Rated 26A
- Temp. range: -22° to 257°F
Pressure Switch, Air Compressor, Standard Action, Factory On/Off Set 140 to 175 PSI, Pressure Range 60 to 200 PSI, Adjustable Differential, Differential Pressure 28 to 40 PSI, Burst Pressure 500 PSI, Port Type 4-Port 1/4 In NPT (Female), 1/4 In Compression Unloader, Diaphragm Actuation Type, Manual Switch Action Auto/ Off, Single Phase, DPST Contact Type, 26 Amps, NEMA 1 Enclosure, Temp Range -22 to 257 F, Standards UL/CSA
|
TYPE |
|
|
ITEM |
|
|
ACTION |
|
|
FACTORY ON/OFF SETTING (PSI) |
140 to 175 |
|
PRESSURE RANGE (PSI) |
60 to 200 |
|
DIFFERENTIAL |
|
|
DIFFERENTIAL PRESSURE (PSI) |
28 to 40 |
|
BURST PRESSURE (PSI) |
|
|
NUMBER OF PORTS |
1 |
|
PORT TYPE |
|
|
UNLOADER |
|
|
ACTUATION TYPE |
|
|
MANUAL SWITCH ACTION |
|
|
PHASE |
|
|
CONTACT TYPE |
|
|
AMPS |
26 |
|
HP @ 1 PHASE - 120V |
|
|
HP @ 1 PHASE - 230V |
|
|
ENCLOSURE |
|
|
TEMP. RANGE (F) |
|
|
STANDARDS |
UL/CSA |
|
SERIES |
SP-205 |
|
WEIGHT |
0.850000 |
