PRESSURE SWITCH CONTROL AIR COMPRESSOR 95 - 125 1 PORT HEAVY DUTY 26 AMP
PRESSURE SWITCH CONTROL AIR COMPRESSOR 95 - 125 1 PORT HEAVY DUTY 26 AMP PRESSURE SWITCH CONTROL AIR COMPRESSOR 95 - 125 1 PORT HEAVY DUTY 26 AMP PRESSURE SWITCH CONTROL AIR COMPRESSOR 95 - 125 1 PORT HEAVY DUTY 26 AMP PRESSURE SWITCH CONTROL AIR COMPRESSOR 95 - 125 1 PORT HEAVY DUTY 26 AMP

PRESSURE SWITCH CONTROL AIR COMPRESSOR 95 - 125 1 PORT HEAVY DUTY 26 AMP

$16.99 USD

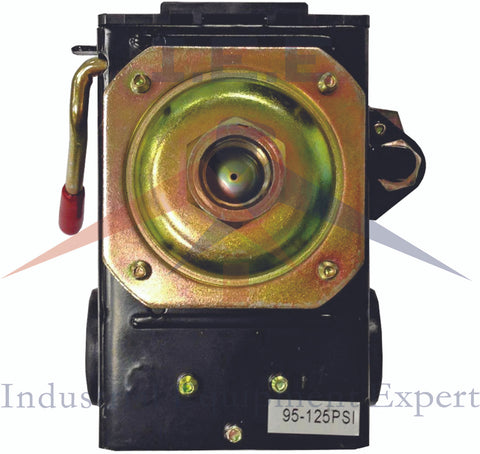

HEAVY DUTY 26 AMP PRESSURE SWITCH

Lefoo AIR COMPRESSOR CONTROL VALVE LF10-L1,single port, 125 PSI 26 AMP

AMP RATING: 26 AMPS SINGLE PHASE OR THREE PHASE, 110/230

  • Air Compressor Pressure Switches
  • For all global air compressor applications.
  • LF 10 Single Port Series (LF10-1H)
  • UL Listed and CSA Certified.
  • DPST switch
  • Rated 26 Amps
  • Temp. range: -22° to 257°F

Pressure Switch, Air Compressor, Standard Action, Factory On/Off Set 95 to 125 PSI, Pressure Range 35 to 150 PSI, Burst Pressure 500 PSI, Port Type 1-Port 1/4 In NPT (Female), 1/4" Compression Unloader, Diaphragm Actuation Type, Manual Switch Action Auto/ Off, Single Phase, DPST Contact Type, 26 Amps, NEMA 1 Enclosure, Temp Range -22 to 257 F, Standards UL/CSA



TYPE

Air Compressor

ITEM

Pressure Switch

ACTION

Standard

FACTORY ON/OFF SETTING (PSI)

95 to 125

PRESSURE RANGE (PSI)

35 to 150




BURST PRESSURE (PSI)

500

NUMBER OF PORTS

1

PORT TYPE

1-Port 1/4" NPT (Female)

UNLOADER

1/4" Compression

ACTUATION TYPE

Diaphragm

MANUAL SWITCH ACTION

Auto/ Off

PHASE

Single

CONTACT TYPE

DPST

AMPS

26

HP @ 1 PHASE - 120V

2

HP @ 1 PHASE - 230V

3

ENCLOSURE

NEMA 1

TEMP. RANGE (F)

-22 to 257

STANDARDS

UL/CSA

SERIES

LF10

WEIGHT

0.850000
