WIRING DIAGRAM WILL BE PROVIDED!!!

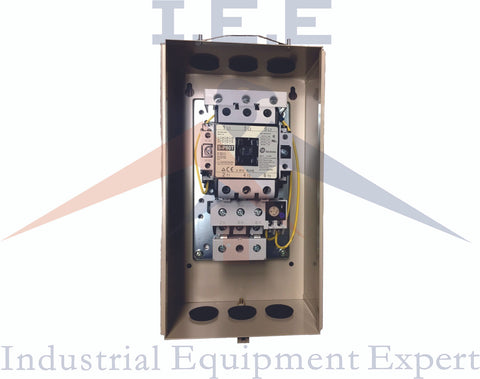

THIS IS A BRAND NEW IN THE BOX 80 AMP THREE PHASE MAGNETIC MOTOR STARTER.

This starter can handle 20HP & 25HP & 30HP  3 phase electric motors with an amp rating between 54 & 80 amps. check your motor plate to see what amperage your electric motor draws at 230 volts. If your 230v motor is between 54 and 80 amps, this starter will work great for you.

80 AMP MAX

THIS IS AN IEC STYLE STARTER AND REQUIRES NO HEATER ELEMENTS.

THIS STARTER COMES EQUIPPED WITH AN AMPERAGE DIAL. SIMPLY TURN THE DIAL TO YOUR REQUIRED AMPS FOR YOUR APPLICATION. THE AMP DIAL RANGE IS BETWEEN 54 - 80 AMPS.

ALSO COMES WITH BUILT IN SIDE MOUNTED AUXILIARY CONTACTS. NORMALLY OPEN & NORMALLY CLOSED TYPE.

STARTER COMES COMPLETE IN A NEMA 1 STYLE  ENCLOSURE, IN ADDITION TO 6 PUNCH OUTS FOR INCOMING AND OUTGOING WIRES. MANUFACTURER HAS SUPPLIED 4 RUBBER GROMMETS FOR WIRE PROTECTION.

 RESET BUTTON LOCATED ON THE OVERLOAD. RESET CAN BE SET TO MANUAL OR AUTO RESET.

HP: 20/25

VOLTAGE: 208-240VAC

AMPS: 80 AMP CONTACTOR MAX

PHASE: THREE (3 pole)

ENCLOSURE: METAL NEMA 1

ENCLOSURE DIMENSIONS:     15" Tall     7.8" wide       6.75" Depth

OVERLOAD: AMPERAGE 54 - 80 AMPS

Rubber Grommets Included for Easy Installation or Retrofitting
