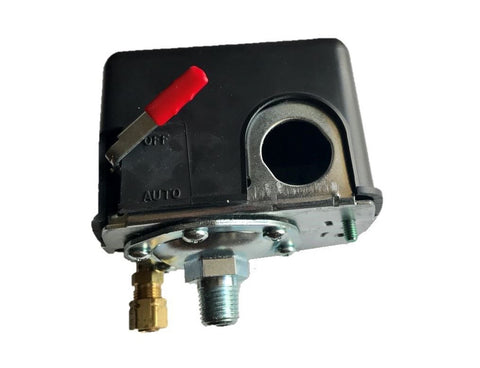

Brand new Square D brand Pumptrol air compressor pressure switch model 9013FHG19J52M1X 95-125 PSI with unloader control valve and On / Off switch.

This pressure switch is designed for a single stage air compressor pumping up to 125 PSI but can be adjusted anywhere from 70-150 PSI.

This switch features a built in On / Off metal lever and also a unloader located on the bottom of the switch. The unloader is used to unload head pressure off the compressor pump for a load free start up. If your compressor does not require a unloader valve on the pressure switch you can leave it not hooked up and the switch will still function properly. This is an authentic Square D brand pressure switch, for more specifications see below.

Specifications:

Brand: Square D Pumptrol

Model: 9013FHG12J52M1X

Number of Pressure Sensing Connection Ports: One 1/4" Male NPT (Note: 1/4" NPT Measures About 1/2" In Diameter)

Unloader Connection Port: 1/4" Compression Which Accepts 1/4" Outside Diameter Copper Or High Pressure Tubing

Preset On Pressure: 95 PSI

Preset Off Pressure:125 PSI

Differential: 30PSI

Can Be Used With Single Or Three Phase

Can Be Used With 110 - 575 Volts Depending On Amperage And Phase

Good Up To 15 Amps Of Continuous Current. (Note: If being used with a magnetic starter the amperage does not matter since all the main power is going through the starter not the pressure switch.)
