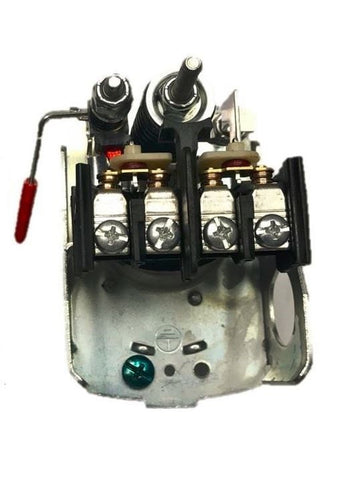

Square D By Schneider Electric 9013FHG42J59M1X Air Compressor Pressure Switch
$33.99 USD
Brand new Square D brand, Pumptrol air compressor pressure switch, model: 9013FHG42J59M1X 135-175 PSI with unloader control valve and On / Off switch.
This pressure switch is designed for a 2 stage air compressor pumping up to 175 PSI but can be adjusted anywhere from 100-200 PSI. This switch features a built in On / Off metal lever and also a unloader located on the bottom of the switch. The unloader is used to unload head pressure off the compressor pump for a load free start up. If your compressor does not require a unloader valve on the pressure switch you can leave it not hooked up and the switch will still function properly. This is an authentic Square D brand pressure switch, for more specifications see below.
Good Up To 15 Amps Of Continuous Current. (Note: If being used with a magnetic starter the amperage does not matter since all the main power is going through the starter not the pressure switch.)
