WEG 7.5 HP 3 Phase 1770 RPM Electric Motor Air Compressor Duty 213/5T Frame
WEG 7.5 HP 3 Phase 1770 RPM Electric Motor Air Compressor Duty 213/5T Frame WEG 7.5 HP 3 Phase 1770 RPM Electric Motor Air Compressor Duty 213/5T Frame WEG 7.5 HP 3 Phase 1770 RPM Electric Motor Air Compressor Duty 213/5T Frame WEG 7.5 HP 3 Phase 1770 RPM Electric Motor Air Compressor Duty 213/5T Frame WEG 7.5 HP 3 Phase 1770 RPM Electric Motor Air Compressor Duty 213/5T Frame

WEG 7.5 HP 3 Phase 1770 RPM Electric Motor Air Compressor Duty 213/5T Frame

$594.95 USD

Tags: Weg motor

Industrial Equipment Expert is a Leading provider of Quality industry equipment such as air compressor, motors, engine, filter system, dryer, pump, airbrush, belt, accessories and parts, drywall tools, etc.



We are known for 100% service satisfactory and fast shipping. Please visit our stores for all the available products we have and we do both Retail and Wholesale for our products.



If you use Best Offer Option or have any question about the item and like to get discount on more order quantities. Please google Industrial Equipment Expert for inqueries. We will do our best to provide the lowest price possible depends on locations.



For quick questions for the item, feel free to use ebay communication system.







I.E.E Industrial Equipment Expert


7.5 HP 213/5T Three Phase 1770 RPM WEG Electric Motor

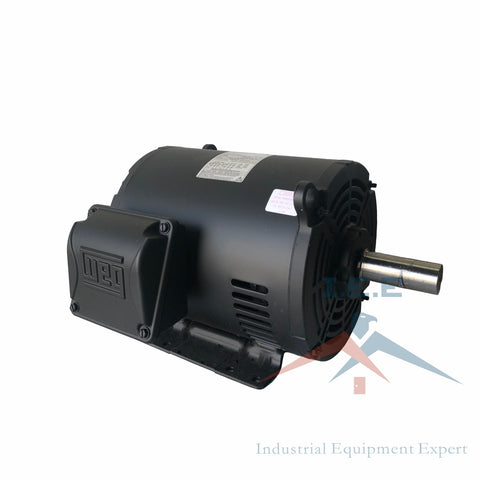

This listing is for a brand new WEG 7.5 horsepower air compressor motor model number 00718OT3E213T-S. This motor is 208-230/460 volt, 20.5-18.5/9.25 AMPS, 60 Hz, 213/5T Frame, three phase, 1-5/16" diameter shaft, and 1770 RPM. It is specifically designed for use with air compressors to meet start up load / torque specifications. This motor can rotate in either direction. This can replace replace motors rated for different RPMs, you will just have to use a different sized pulley to make up the RPM difference on your compressor. If you have any questions about this motor or if it will work as a replacement on your compressor feel free to contact us.

General Purpose Motor, 3-Phase, Open Dripproof, 7-1/2 HP, Nameplate RPM 1770, 213/5T Frame, Voltage 230/460, 60 Hz, 3 Phase, 18.5/9.3 Full Load Amps, No. of Speeds 1, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Thermal Protection None, Ins. Class F, 1.15 Motor Service Factor, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 16-9/16 In., Motor Shaft Design Keyed

Specifications

• Frame: 213/5T
• Output: 7.5 HP
• Frequency: 60 Hz
• Rated Speed: 1770 RPM
• Rated Voltage: 208-230/460 Volts
• Rated Current: 20.5-18.5/9.25 Amps
• Insulation Class: F
• Service Factor: 1.15 (1.00 at 208V)
• Ambient Temperature: -20°C to +40°C
• Enclosure: ODP
• Rotation: Both (CW and CCW)
• Approx. Weight: 109.65 lbs
• Approximate Shaft Length: 3-3/8"
• Approximate Shaft Diameter: 1-5/16"

"THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES"

This motor has a one-year limited manufacturer's warranty and also a 30-day warranty
